RS120/160/180/200/220
Taiyue
8479899990
| Color: | |
|---|---|
| Quantity: | |
Product Description

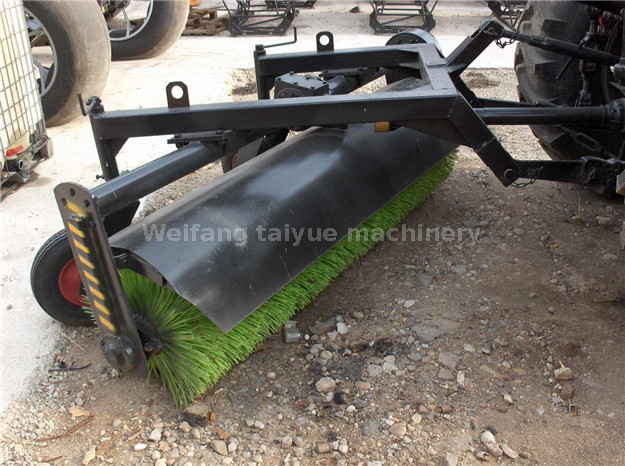

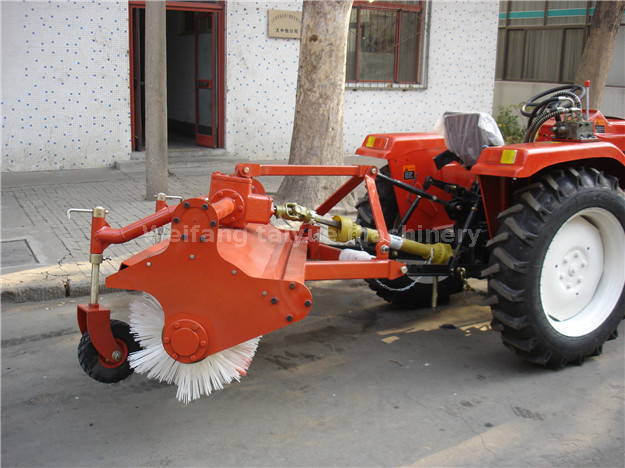

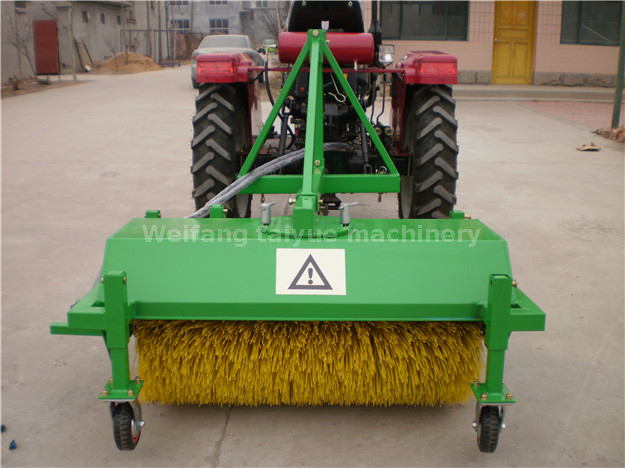

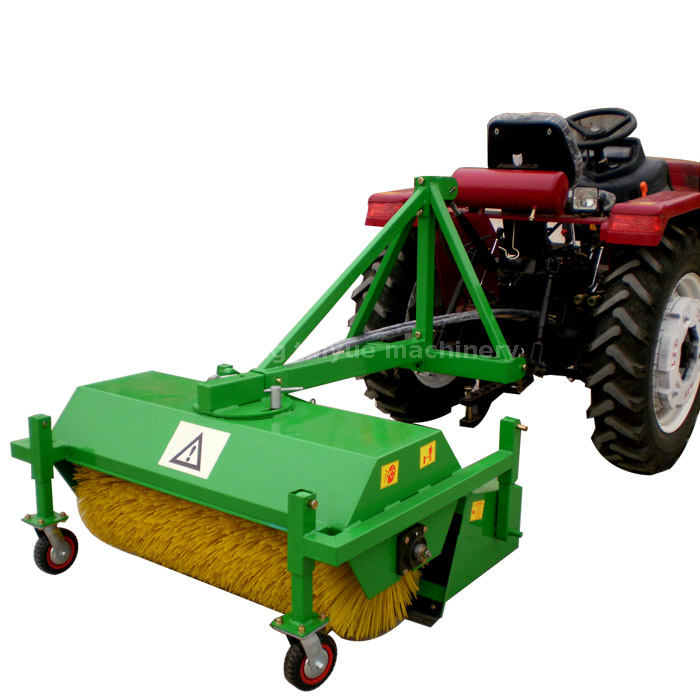

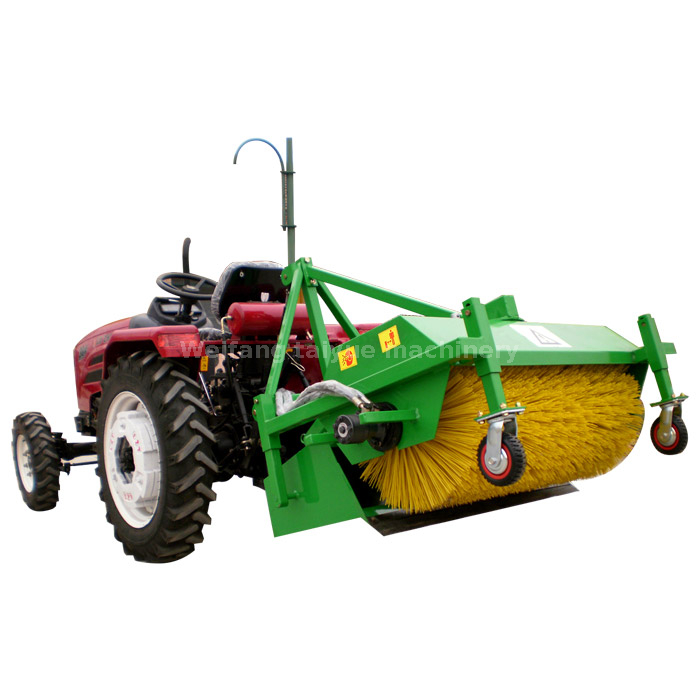

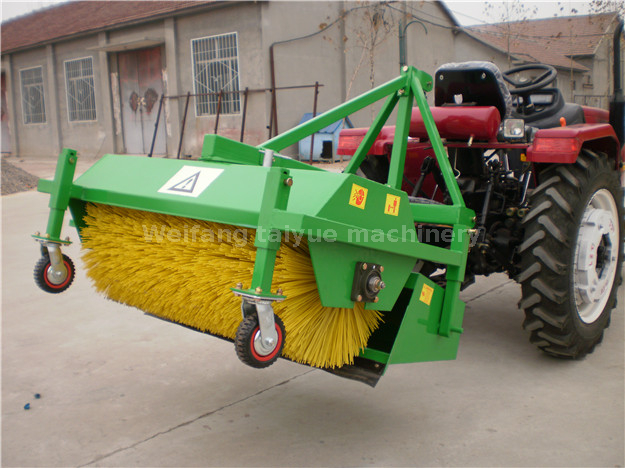

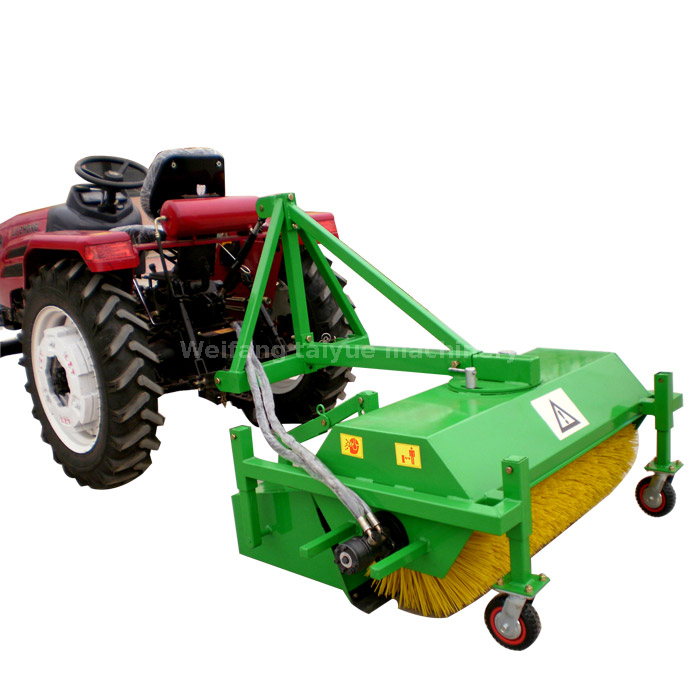

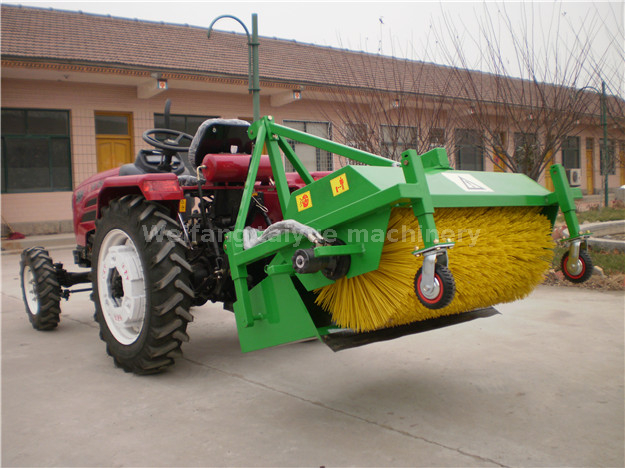

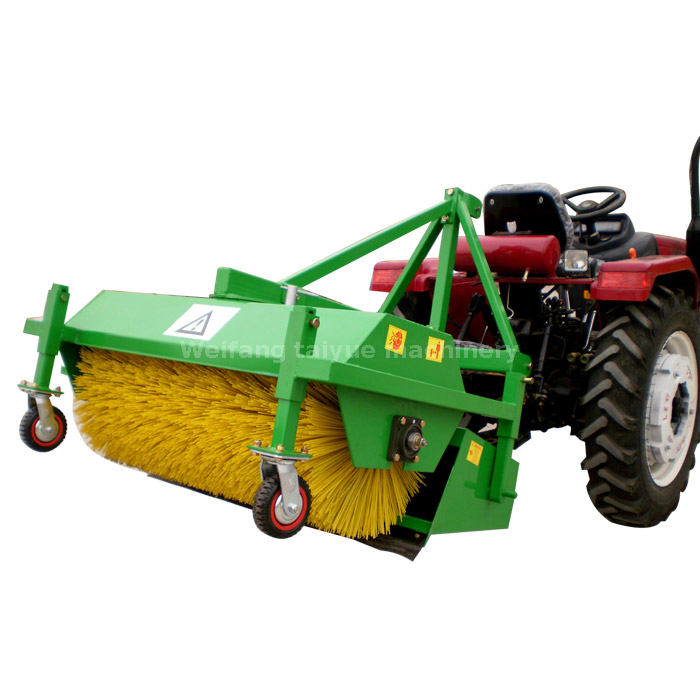

Road sweeper description
Road sweeper is drive by tractor PTO,widely use on farm and construction road clearing work,from
120-220cm width.
Road sweeper specification
Model | RS120 | RS160 | RS180 | RS200 |
Structure weight: | 180kg | 220kg | 240kg | 300kg |
Overall dimension(mm): | 1380*800*800mm | 1780*800*800mm | 1980*800*800mm | 2200*1200*800mm |
Brush wridth(mm) | 1180 | 1580 | 1780 | 1900 |
work efficiency (m2 /hour) | 16800 | 22100 | 24800 | 28800 |
Required tractor power | 20-45 | 50-75 | 50-100 | 50-100 |
Connecting with tractor | 3 point suspension | 3 point suspension | 3 point suspension | 3 point suspension |
Driveline specification: | pto drive | pto drive | pto drive | pto drive |
Brush material： | PP | PP | PP | PP |
Brush axle material | Seamless steel | Seamless steel | Seamless steel | Seamless steel |
brush rotation speed | 180 rpm | 180 rpm | 180 rpm | 180 rpm |
Brush diameter | 560mm | 560mm | 560mm | 560mm |
