LW-4 LW-5 LW-6 LW-7 LW-8 LW-9 LW-10 LW-12
Taiyue
843069
| Color: | |
|---|---|
| Availability: | |
| Quantity: | |
Product Description

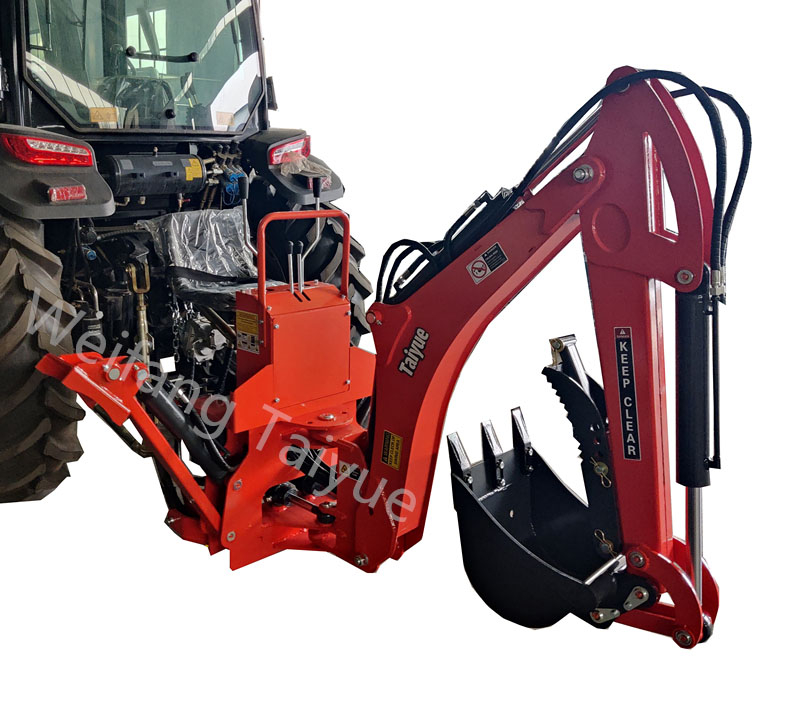

Tractor backhoe description
Tractor backhoe is widely used on small farm ,gardenand construction digging works,use 3 point hitch,driven by tractor PTO,easy transport.
1. Matched any tractor.
2. Powered by PTO driven with hydraulic pump.
3.3-point hitched backhoe, steady structure
4.Oil tank, oil show, gas-permeable cap
5.claw on boom, handed control valve
6.luxury spring seat and safety belt.
7.Optional buckets, 300-800mm width
8.Work independently, only need vehicle to tow to the working destination

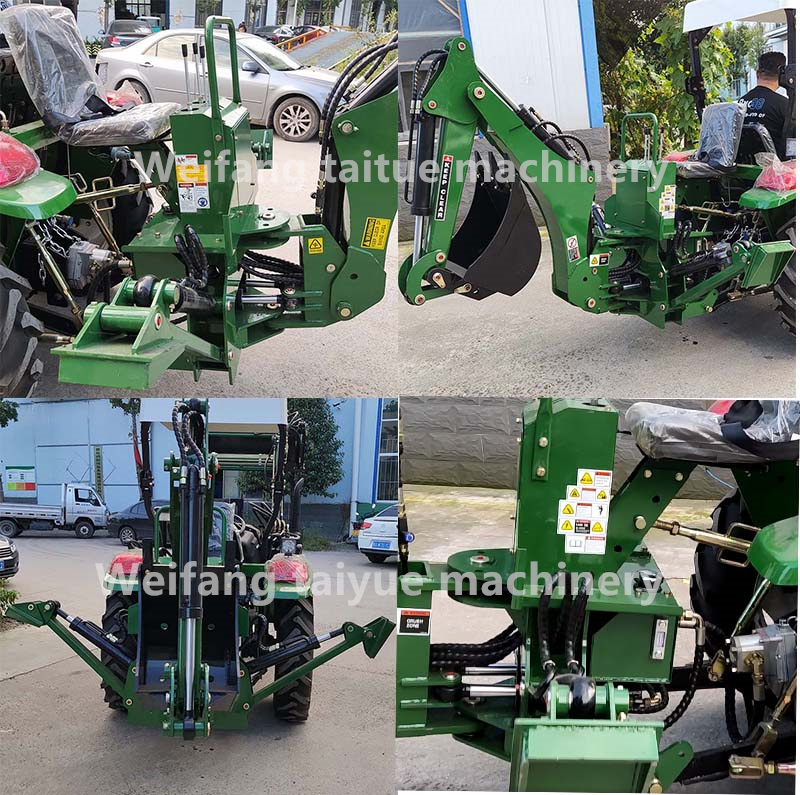

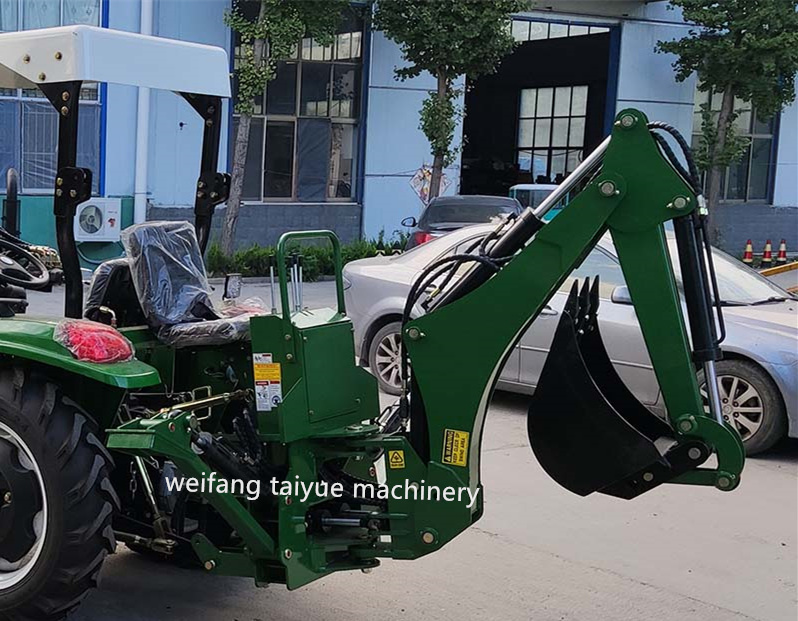

Tractor backhoe detailes

Tractor backhoe specification
Model | LW-5 | LW-6 | LW-7
| LW-8
| LW-9
| LW-10
| LW—12
|
Matching Power | 15-25hp | 20-35hp | 30-50hp | 40-65hp | 50-75hp | 65-90hp | 80-150hp |
Max Digging Depth | 150cm/5 feet | 180cm/6 feet | 210cm/7 feet | 240cm/8 feet | 270cm/9 feet | 300cm/10 feet | 360cm/12 feet |
Max Digging Height | 210cm | 250cm | 310cm | 345cm | 390cm | 410cm | 430cm |
Max Unloading Height | 145cm | 160cm | 177cm | 195cm | 240cm | 255cm | 277mm |
Max Digging Radius | 230cm | 270cm | 310cm | 350cm | 380cm | 400cm | 430cm |
Bucket rotation angel | 160° | 160° | 160° | 160° | 160° | 160° | 160° |
Swing angle for boom | 180° | 180° | 180° | 180° | 180° | 180° | 180° |
Valve standard Pressure | 16Mpa | 16Mpa | 16Mpa | 16Mpa | 16Mpa | 16Ma | 16 Mpa |
Bucket Width | 30cm | 30cm | 40cm | 40cm | 45cm | 50cm | 50cm |
Weight | 340kg | 470kg | 480kg | 510kg | 580kg | 620kg | 650kg |

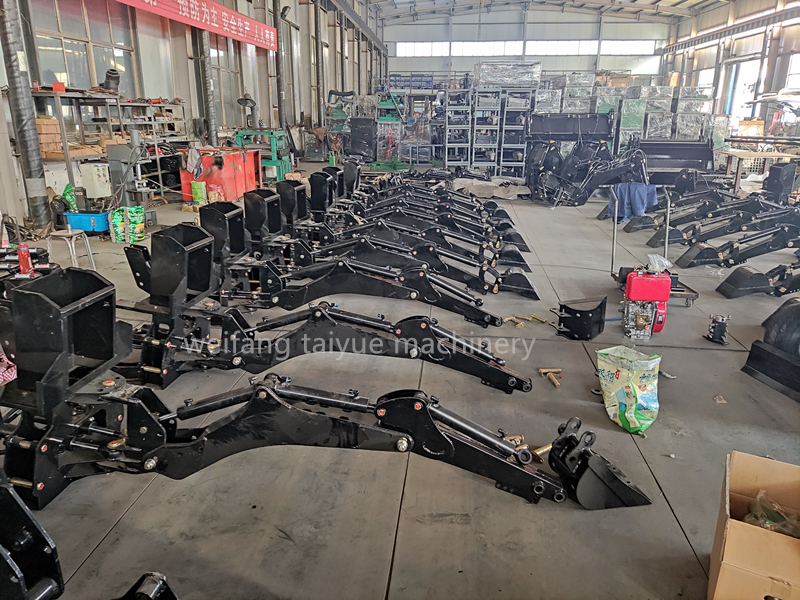

Our factory

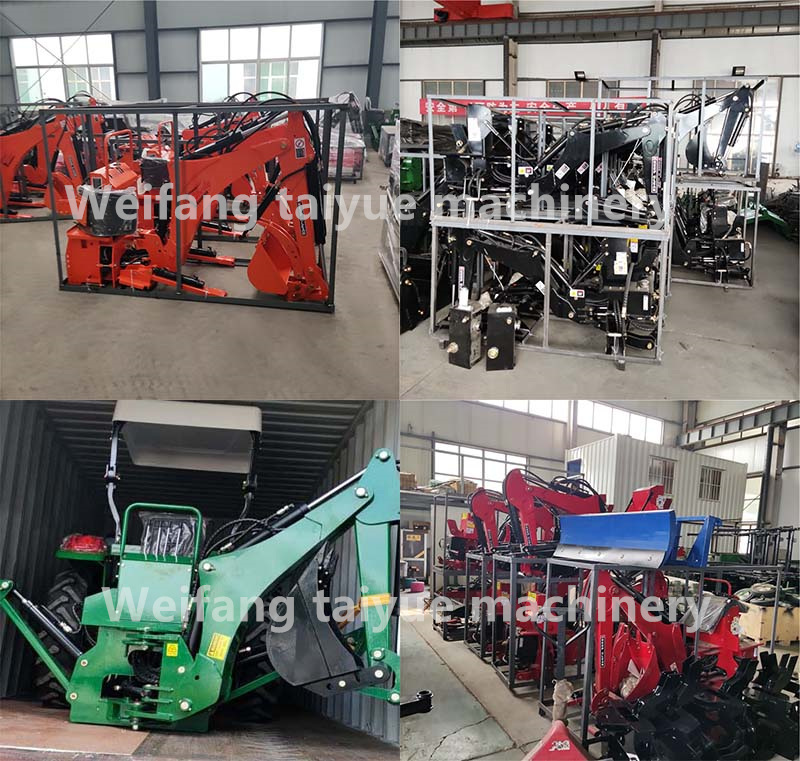

Packaging and shipping
Tractor backhoe packahing and shipping
