554/605/704/804
Taiyue
870193
| Color: | |
|---|---|
| Quantity: | |
Product Description
TB chassis 55hp 60hp 70hp 80hp 4wd tractor can be used for medium and heavy duty farm work.By using famous diesel engine,reliable gear box,and heavy duty chassis,our tractors has sold to Europe,Australia,South American and Africa ,Asia eg many countries.
TB tractor also can be equiped with loader,backhoe,wood chipepr,trencher,mower,plough,harrow,trailer,baler eg many implements,can do multy farm work.
TB compact tractor specification
| Model | 554/604 | 704 | 804 |
| Drive type | 4*4 | ||
| Engine | |||
| Engine brand | Quanchai or Yangdong | Quanchai or Yangdong | Quanchai or Yangdong |
| Type | 4 cylinder, Water-cooling, In-line, 4 stroke | 4 cylinder, Water-cooling, In-line, 4 stroke | 4 cylinder, Water-cooling, In-line, 4 stroke |
| Rated speed (r/min) | 2400 | 2400 | 2400 |
| Engine power (hp) | 55hp/60hp/40.4kw/44.1kw | 70hp/51.5kw | 80hp/58.8kw |
| Transmission | |||
| Clutch | Dry, dual type | Dry, dual type | Dry, dual type |
| PTO Speed(rpm) | 540/760 or 540/1000 | 540/760 or 540/1000 | 540/760 or 540/1000 |
| Gear shift | 12F+12R | 12F+12R | 12F+12R |
| Hydraulic system | |||
| Hydraulic output valve | 2-Way optional | 2-Way optional | 2-Way optional |
| Three point linkage | |||
| Category of 3-point link | Category II | Category II | Category II |
| Technical parameter | |||
| Dimension(L*W*H) mm | 3800*1750*2200 | 3900*1790*2200 | 3900*1790*2200 |
| Min. Net weight | 2350kg | 2750kg | 2850kg |
| Wheel base(mm) | 2070 | 2070 | 1950 |
| Track base(mm) front wheel | 1400 | 1400-1450 | 1400-1450 |
| Track base(mm) rear wheel | 1400 | 1400-1450 | 1400-1450 |
| The smallest clearance(mm) | 410 | 410 | 410 |
| Front tyre | 8.3-20 | 8.3-24 or 9.5-20 | 8.3-24 or 9.5-20 |
| Rear tyre | 12.4-28 | 14.9-30 or 14.9-28 | 14.9-30 or 14.9-28 |
| Steering type | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering |

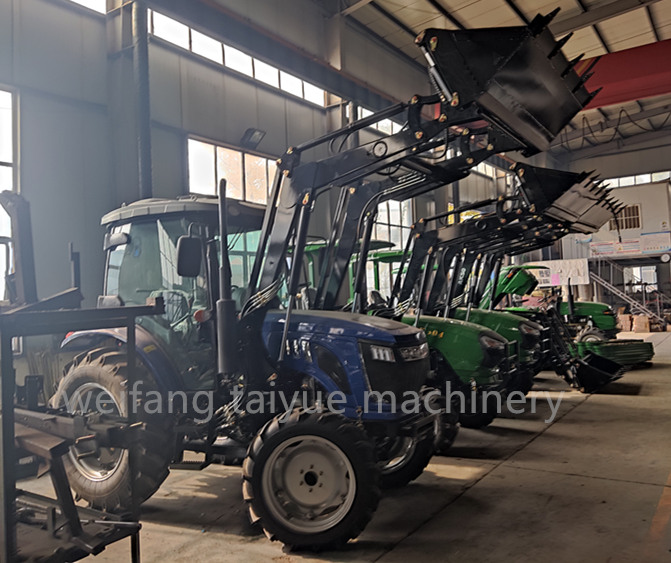

TB compact tractor details

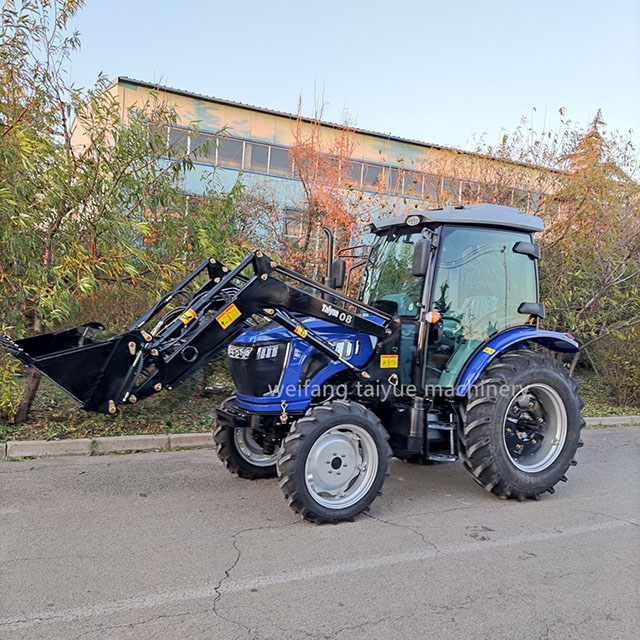

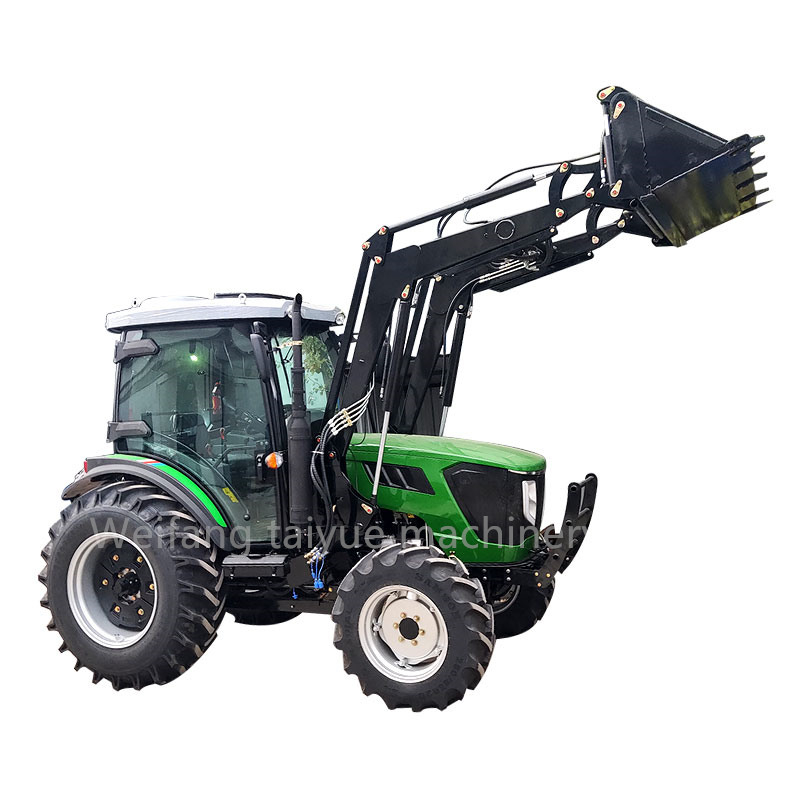

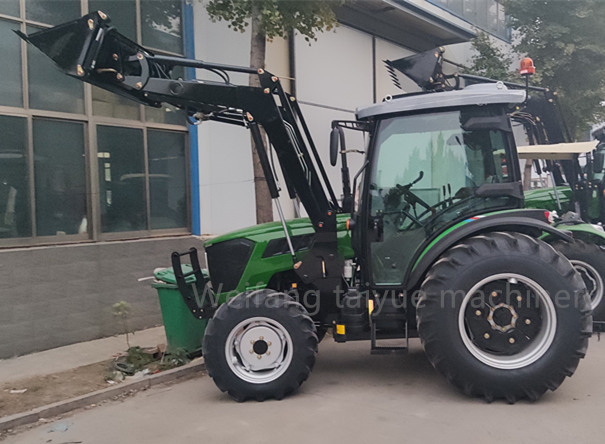

TB compact tractor with front loader

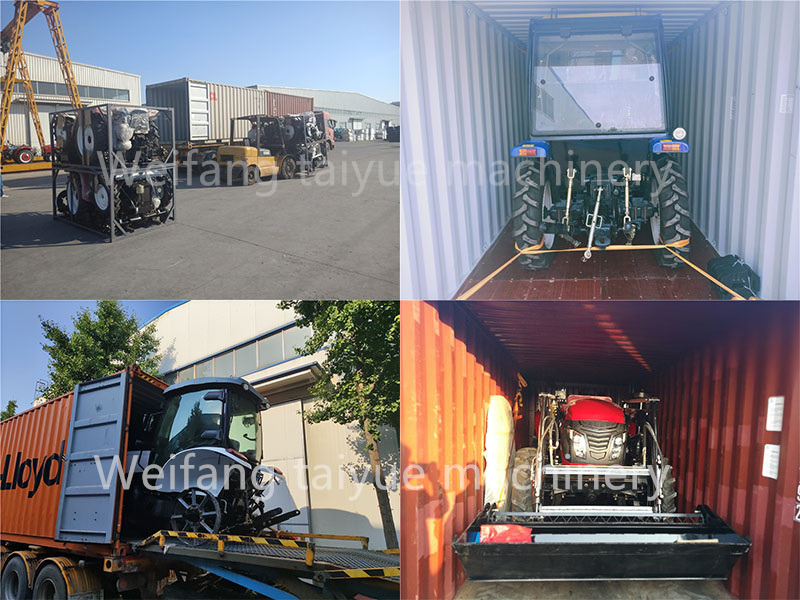

Packaging and shipping

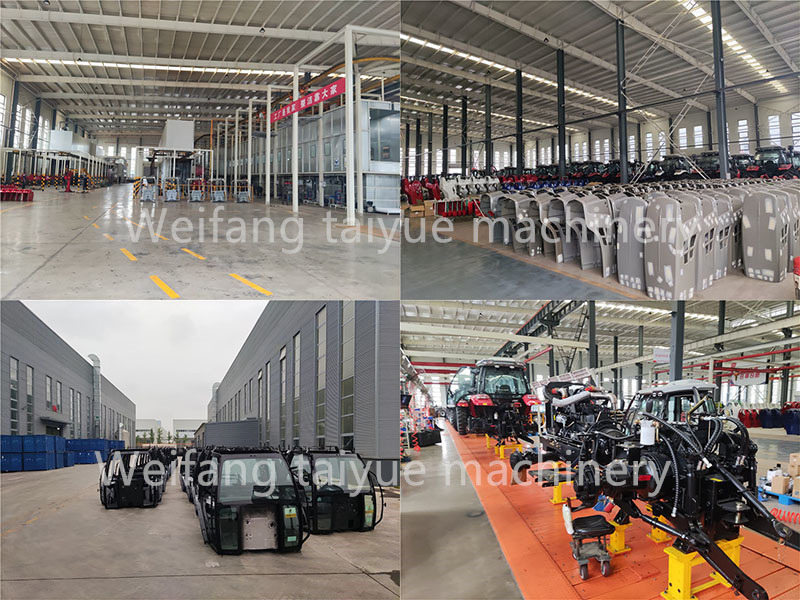

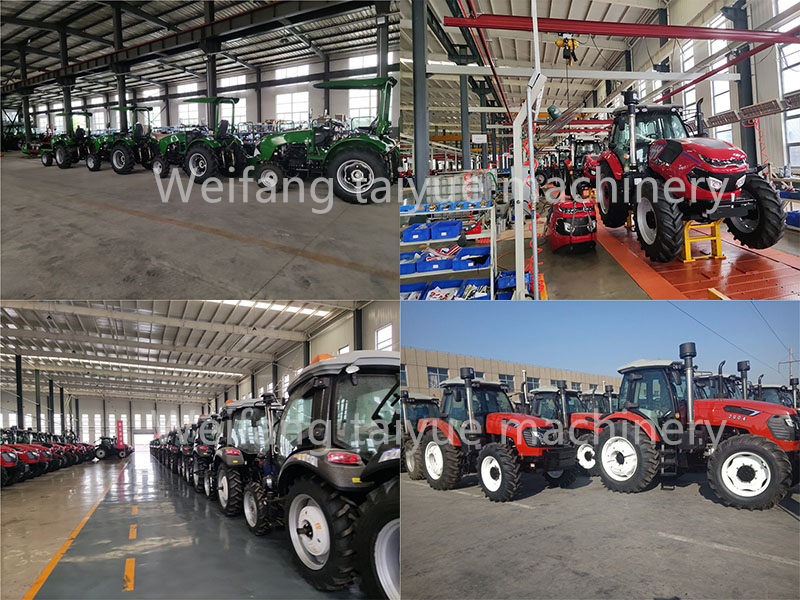

Our factory
Our service
We supply 18 months warranty,any problem,free part send by air.
We can also do OEM machines for your needs,such as logo,industrial tire,package ,main part eg.
For small quantity,delivery time is 10-15 days.
