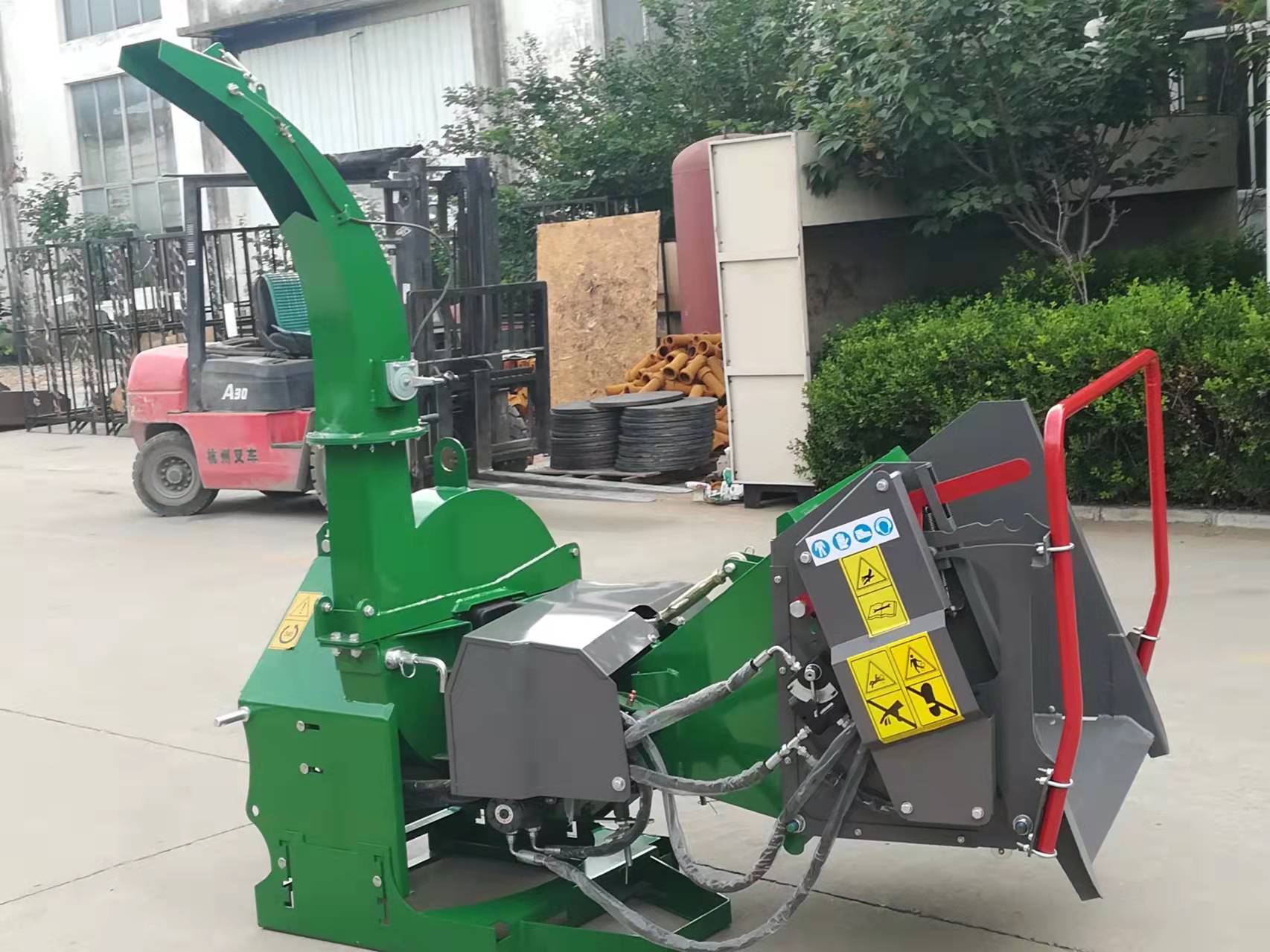

BX42s/BX42r/BX52r/BX62s/BX62r/BX72r/BX92r
Taiyue
846599
| Color: | |
|---|---|
| Quantity: | |
Product Description

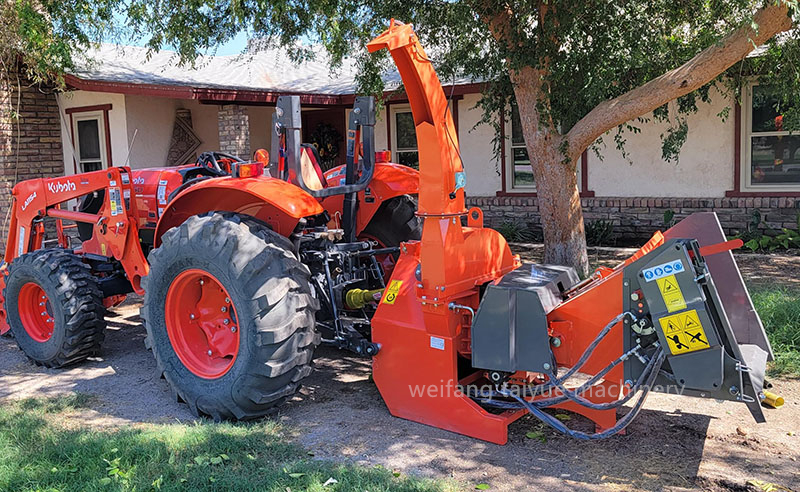

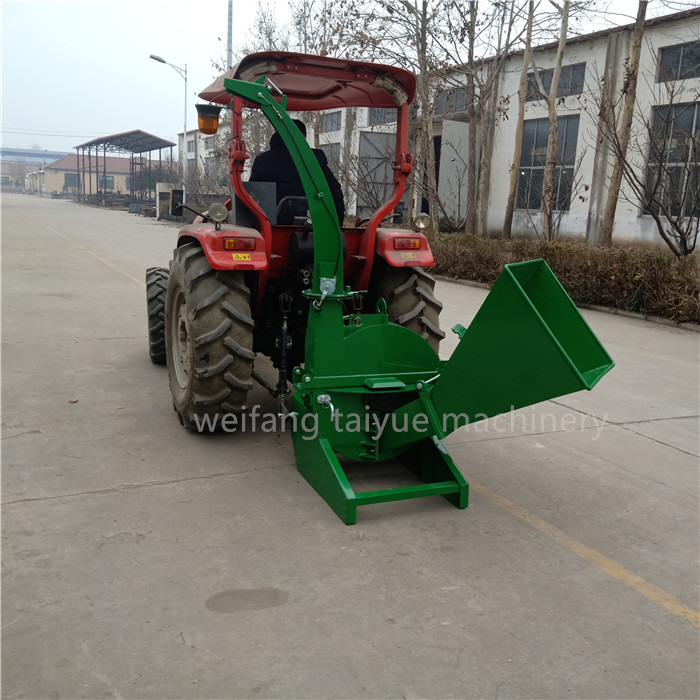

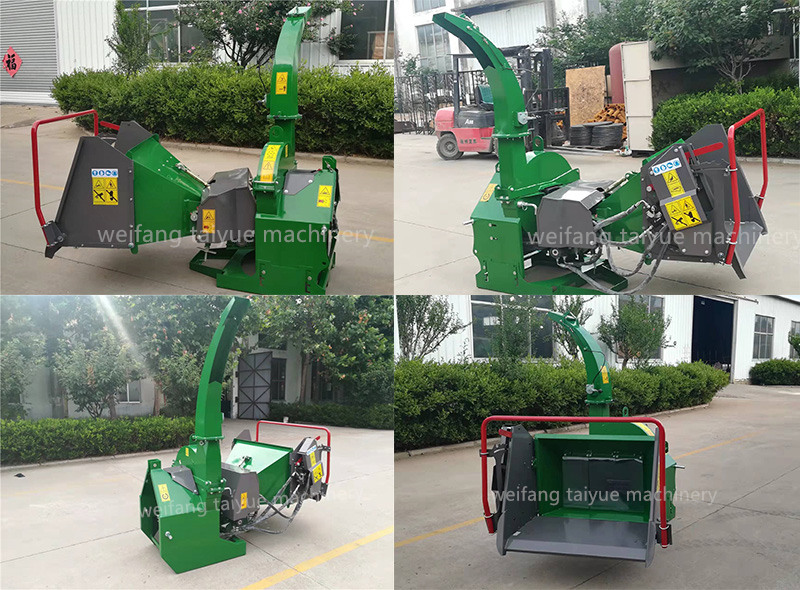

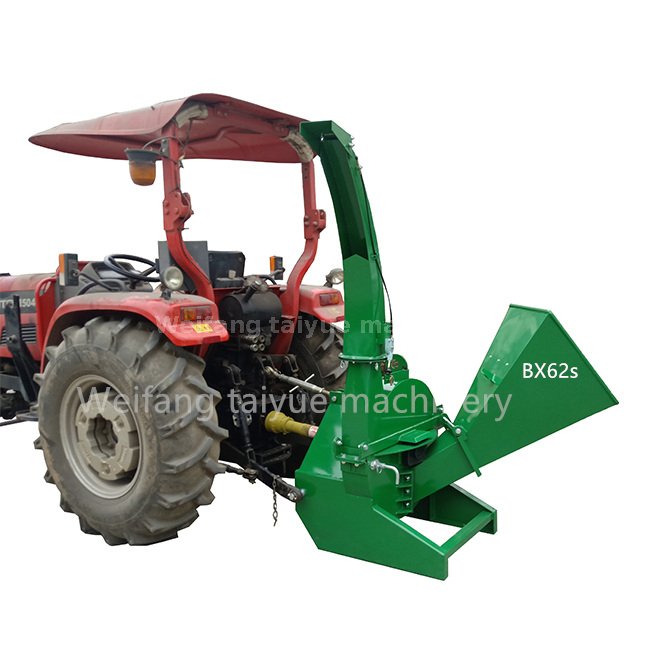

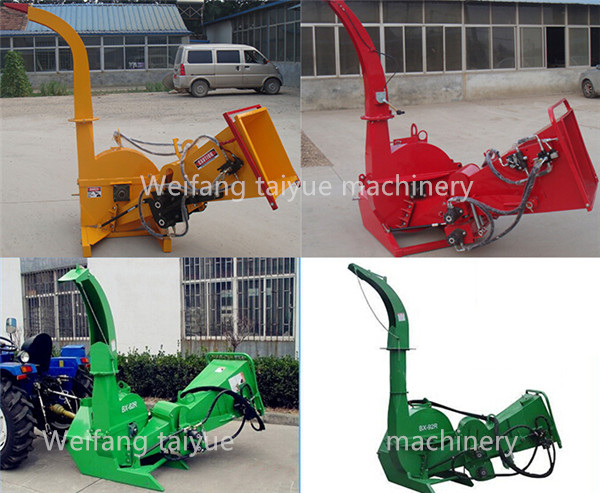

BX series wood chipper is driven by tractor PTO with 4-10 inch chipping capacity,includeing BX42s,BX42r ,BX52r,BX62s,BX62r,BX72r,
and BX92r which is divided into self feeding and hydraulic feeding system.
It has many advantage.
1 Tractor PTO driven,,easy tranport.
2 CE approved,reliable quality

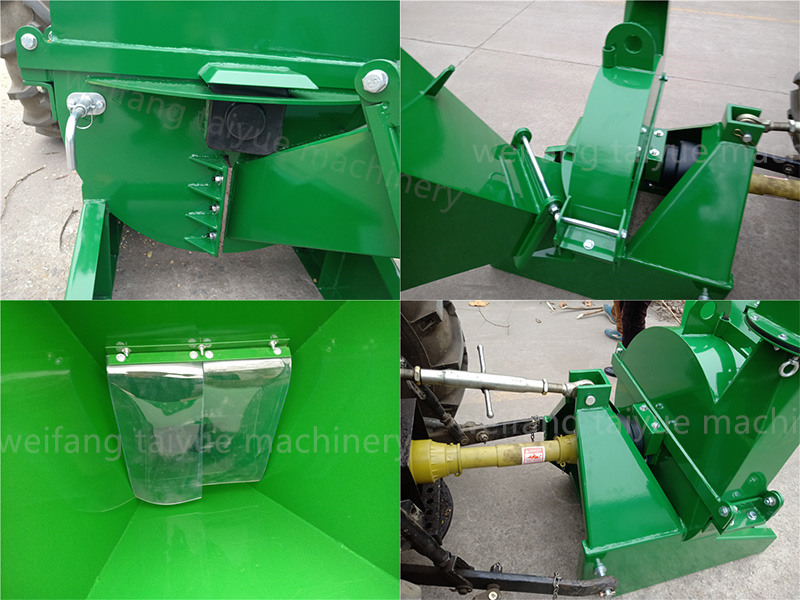

3 Air Vents, Twig Breaker Blower Paddles

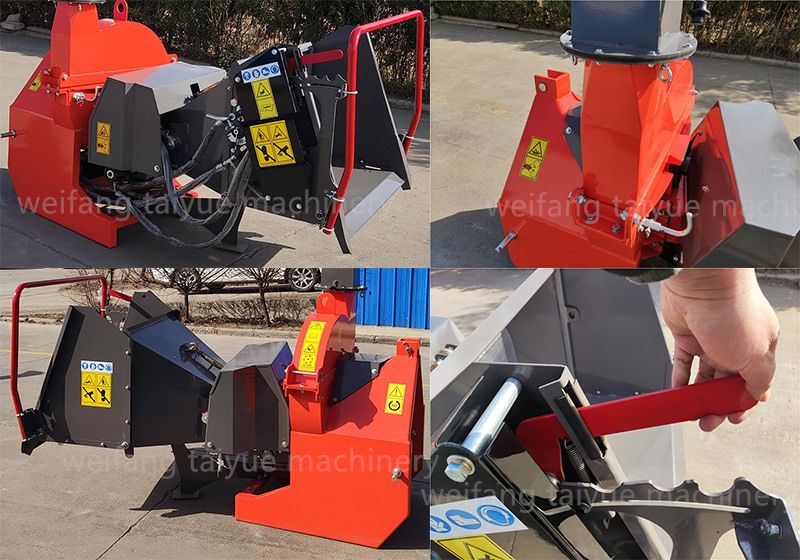

4 Opotional hydrauli feedings,logs,branches eg are control fed for continuous chipping
5 Adjustable Chute ,easy operation
BX wood chipper specification
Model | BX42S/BX42R | BX62S /BX62R | BX72R | BX92R |
Drive System | Direct drive, PTO Shaft | |||
HP Range | 18-50HP | 30-70HP | 45-70HP | 50-100HP |
Chipper Capacity | 4 Dia. (max. 12 slab) | 6 Dia. (max. 12 slab) | 7 Dia. (up to 13 slab) | 9 Dia. (up to 14 slab) |
Rotor Size | 25" | 29" | 35" | 37" |
Rotor Knives QTY | 4PCS | 4PCS | 4PCS | 4PCS |
Knife Type | Hardened tool steel | Hardened tool steel | Hardened tool steel | Hardened tool steel |
Knife Size | 210*60*9mm | 210*60*9mm | 240*60*9mm | 320*100*16mm |
Rotor Weight | 50kgs | 98kgs | 98kgs | 242kgs |
Rotor thickness | 18mm | 25mm | 25mm | 30mm |
Feeding System | Manual or Hydraulic | Manual or Hydraulic | Hydraulic | Hydraulic |
Mount System | 3 Point Hitch | 3 Point Hitch | 3 Point Hitch | 3 Point Hitch |
Dimensions (Hopper Folded) | 1600*1600*1830mm | 1850*1550*2040mm | 1850*1550*2040mm | 1950*1750*2040mm |
Hopper Opening | 500 x 500mm | 6½ x 12 | 630 x 630 mm | 640 x 640 mm |
Discharge Hood Rotation | 360° | 360° | 360° | 360° |
Discharge Hood Height | 60" | 74" | 84" | 87" |
Rated RPM | 540-1000 | 540-1000 | 540-1000 | 540-1000 |
Net weight | 230/385 kgs | 400/500 kgs | 540 kgs | 780 kgs |

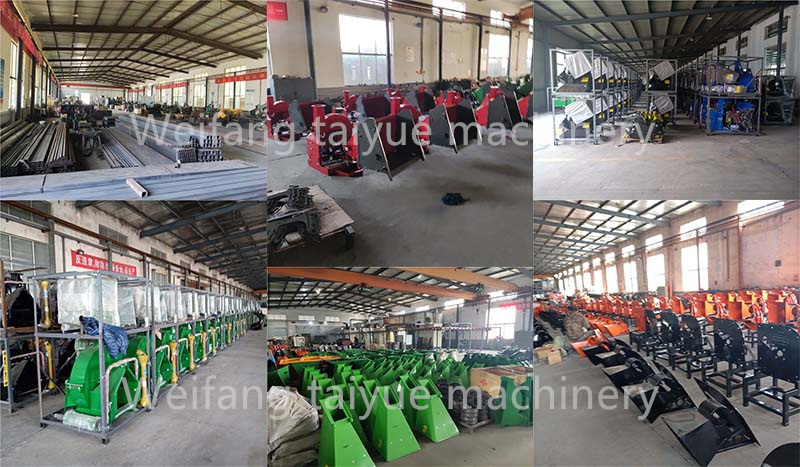

Our factory
Weifang Taiyue Machinery Equipment Co., Ltd. is an expert agriculture machinery manufacturer, Based on
facilities covering 20, 000 square meter and assets amounting USD10 million. The main products are: wood chippers, include tractor wood chipper such as BX wood chipper and TH wood chipepr,and self power wood chipper,including deisel wood chipper and ATV towable gasoline wood chipper, ATV backhoe and other agro implements, etc., which can be customized and processed according to the special requirements of customers,or OEM production can be provided.
With good quality product, reasonable price, and best after-sale service, we have gained good reputation from
all over the world, such asEurope, North,America, Central and South America, Africa, Australia, New Zealand eg contiments and countires.

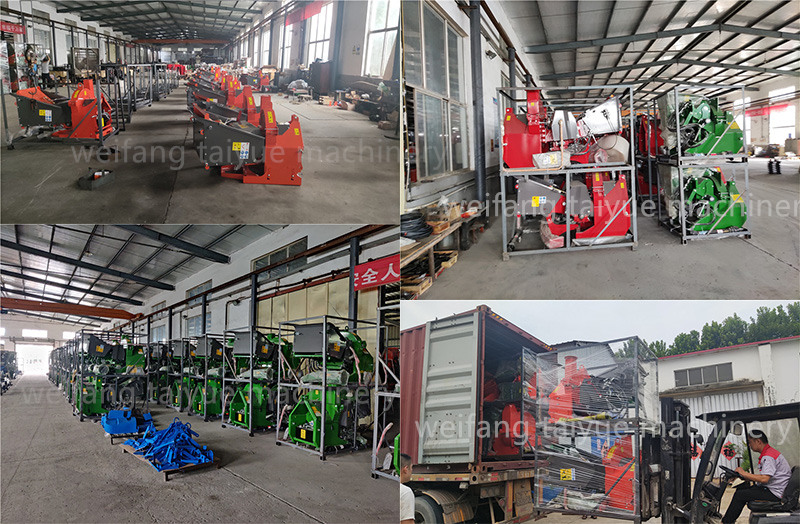

Packaging and shipping
BX42s BX42r BX52R BX62s BX62r BX72r BX92r wood chipper packahing and shipping
